Silly but This Is a WordPress Blog Running on Kubernetes

You probably think it’s an overkill to use Kubernetes for a WordPress blog with less than a thousand monthly visitors. While this may be true, it’s totally worth using Kubernetes for the bragging rights. This is a WordPress blog running on Kubernetes!

Kubernetes running WordPress and MariaDB
Sources: https://pixabay.com/images/id-5718352/ and https://www.freepik.com/free-vector/cargo-freight-container_3795063.htm

Hardware

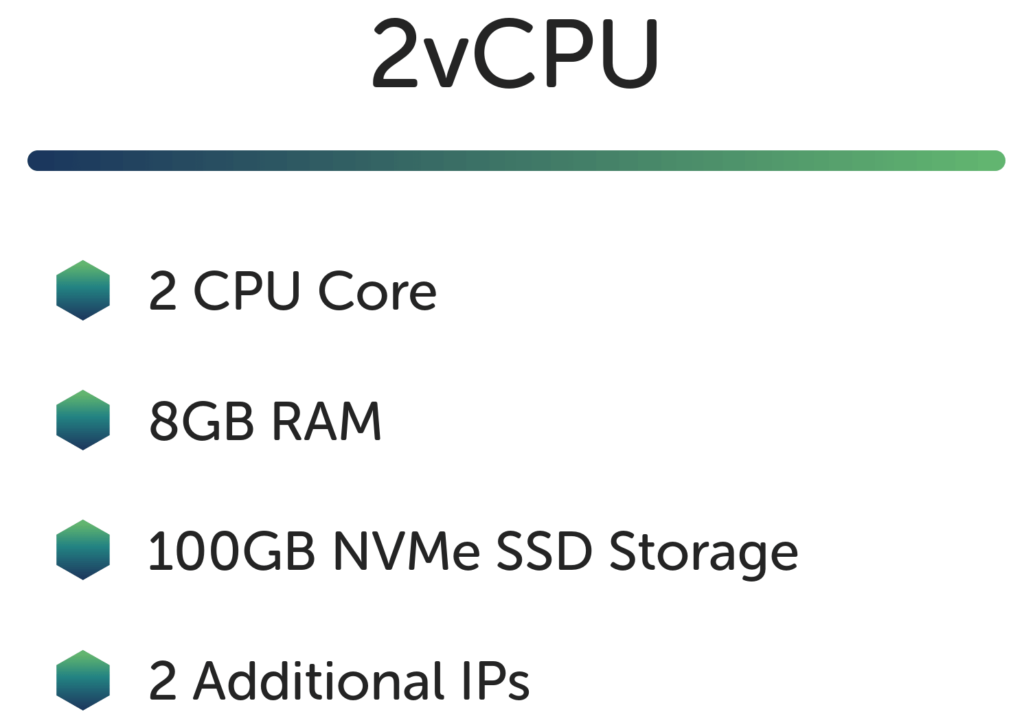

2vCPU has 2 CPU Cores, 8GB RAM, 100GB NVMe SSD storage and 2 Additional IPs

Hosting is provided by Heart Internet. Fortunately the instance has 2 vCPUs (minimum required by some Kubernetes distributions), 8 GB memory and 100GB NVMe SSD storage. The virtual machine runs CentOS 7.

Kubernetes Distribution

minikube logo

minikube is the distribution choice because of its popularity and ease of use. See our article on Kubernetes distributions for local environments for other options.

Driver choice

minikube offers a variety of drivers to choose from. This server uses “none” driver for an advanced configuration using docker.

Start minikube on boot

minikube is in the startup so systemd will ensure it is started on every boot. To achieve that, save the following file to /etc/systemd/system/minikube.service:

Note: You’ll need to replace “jsmith” with the user that set up minikube since minikube will need to access “.minikube” directory in the user’s home directory

Once that’s done, run the following command to reload systemctl configuration:

systemctl daemon-reload

To finish adding minikube to startup and to start and stop minikube you can now use these commands:

# Add to startup
systemctl enable minikube.service
# Stop
systemctl stop minikube.service
# Start
systemctl start minikube.service

MariaDB Database

MariaDB logo

Choose MariaDB but not because Sun Microsystems owns MySQL, do it because MySQL core developers have joined the MariaDB team. As a result, MariaDB is more performant and has a lot more features than MySQL. See this blog post comparing MySQL, MariaDB and Percona for WordPress by Kernl.us.

Root password secret

In order to install MariaDB into our cluster we first need to ensure we have the secret required for the deployment:

kubectl create secret generic radwell-blog-mariadb \
    --from-literal=root-password=supersecurepassword

Persistent storage

As you can see in the PersistentVolume resource definition, MariaDB data is on the host disk (hostPath storage) in /data/radwell-blog-database directory. For this reason, this storage setup only works for single node clusters.

Kubernetes resources

Below are the the resources required for MariaDB:

Apply the resources above in the following order:

  • backend-pv.yaml
  • backend-pvc.yaml
  • backend-deployment.yaml
  • backend-service.yaml

NGINX + PHP-FPM

WordPress runs on PHP and since its static files are not separate it’s best to use NGINX rather than Apache. This is because NGINX performs better with static files. The difference between the solutions is negligible when a CDN is used to serve static files.

NGINX configuration

There are some things to note with our NGINX configuration. First of all, we’re redirecting the logs to the output so we can read them using kubectl log. We’re also enabling gzip compression and caching for performance. Finally, we’re configuring PHP files to use php-fpm.

Persistent storage

WordPress needs persistent storage for uploaded images and background updates. Like MariaDB, we’re using the host disk and storing files in the /data/radwell-blog-code directory.

To get WordPress running you’ll need to download WordPress and install into the /data/radwell-blog-code directory on the host filesystem. Also remember to configure the database to connect to the “radwell-blog-db” service we defined earlier.

Application container image

As you may know, Docker Hub has a container image for WordPress. That container image may not be for everyone because the image contains a single version of WordPress and doesn’t work for background updates. We’re using a php-fpm image with some additional PHP modules instead. Using the Dockerfile below, build and tag oradwell/blog. Alternatively you can build the image directly from the gist URL.

docker build https://gist.githubusercontent.com/oradwell/af975a58a47eca39402a26c5d97d5724/raw/b44a1c72532bf9ef016033bc1f8c5429e93bf5e6/Dockerfile -t oradwell/blog

Kubernetes resources

Below are the the resources required for WordPress application itself:

Apply the resources above in the following order:

  • code-pv.yaml
  • code-pvc.yaml
  • nginx-configmap.yaml
  • frontend-deployment.yaml
  • frontend-service.yaml
Visualisation of radwell-blog, radwell-blog-db, and radwell-home Kubernetes services in Weave Scope
Visualisation of the Kubernetes services in Weave Scope

Ingress

To make the WordPress application accessible from outside the virtual machine we need to use an ingress.

Ensure ingress-nginx controller is enabled. You can do this with minikube using the following command:

minikube addons enable ingress

Now, all you need to do is to create the ingress resource.

Once the ingress is up, you should be able to access WordPress on port 80.

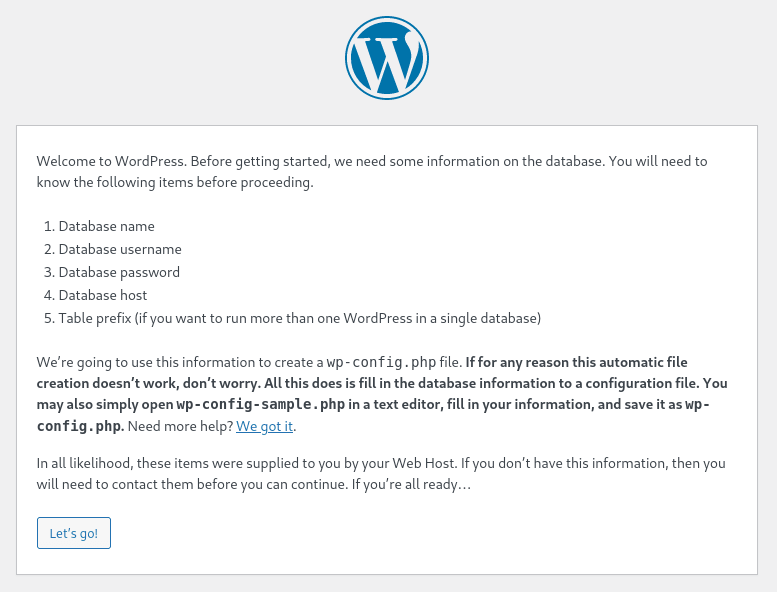

WordPress welcome screen
WordPress welcome screen

Last words

Since Kubernetes uses a lot of resources, it can only run on large machines and reduces the resources available for the services. That said, Kubernetes ensures the services are responsive by using probes. Therefore, it may be beneficial even for single-node environments. Do you think it is worth having a WordPress blog running on Kubernetes?
